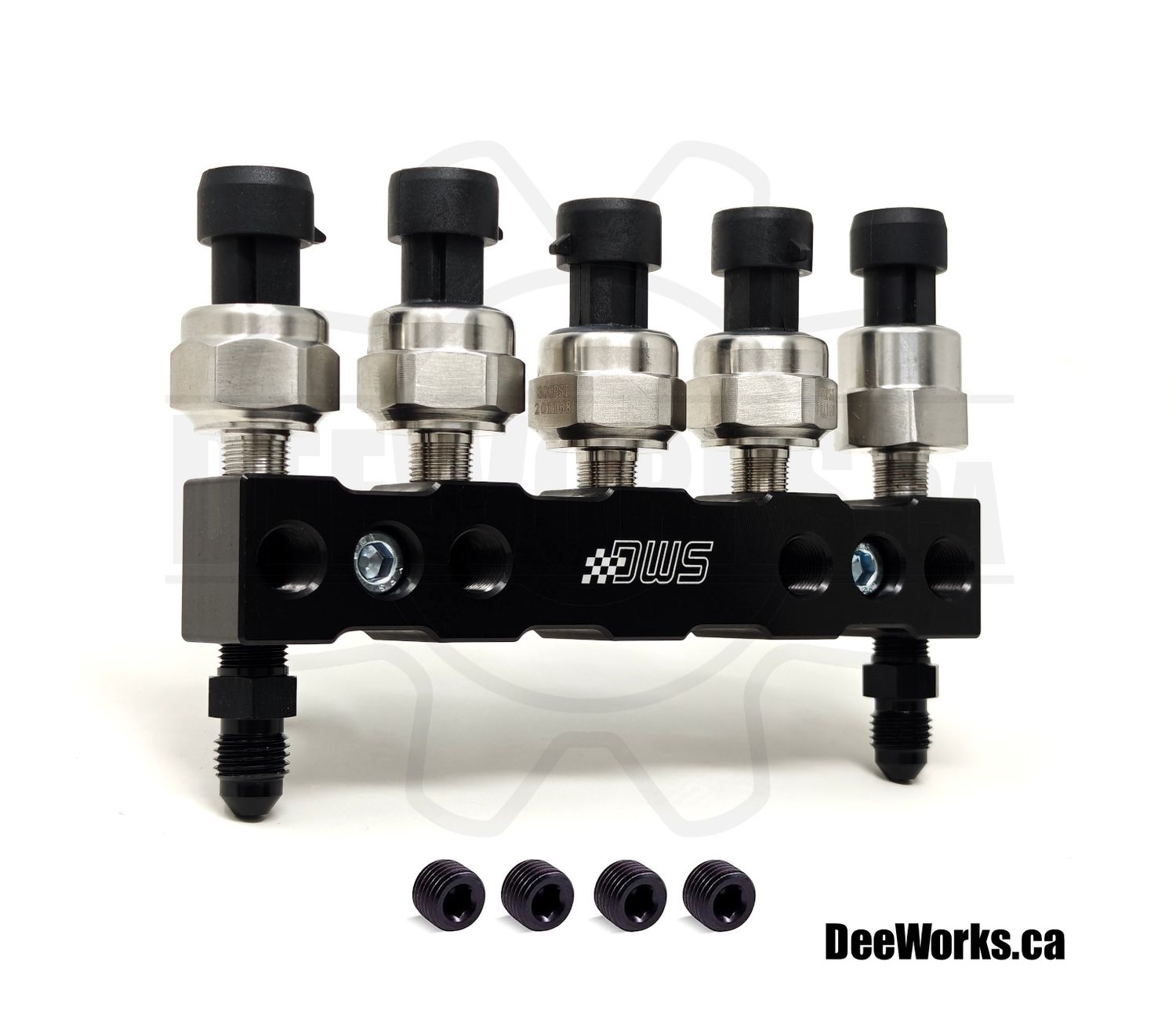

Remote Sensor Billet Block Mount

This remote sensor block allows you to remotely mount a pressure transducer or any other 1/8″ NPT sensor to a more convenient location. This help keeps the sensor away from heat source, simplify and centralize wiring as well as plumbing. Available from 1 to 5 Port, pick the one with enough ports to cover your whole sensor array. All blocks share the same design so they all blend well together if multiple block were to be used.

The blocks are CNC machined out of 6061-T6 aluminum and mount using 2 included M6 SHCS. This model has circuits that can either be plumbed from the bottom or the front; 1/8″ NPT Plugs are included to block the unused ports. AN4 to 1/8 NPT fittings are available for purchase as an add-on from the drop down menu.

Specs;

• Machined from 6061-T6 Aluminum
• Black Anodized
• Laser Etched Logo
• Mount Bolts (M6x40 SHCS) and nuts included
• Pressure Transducers pictured are NOT included
• AN4 Fittings are NOT included but available for purchase from drop down menu
