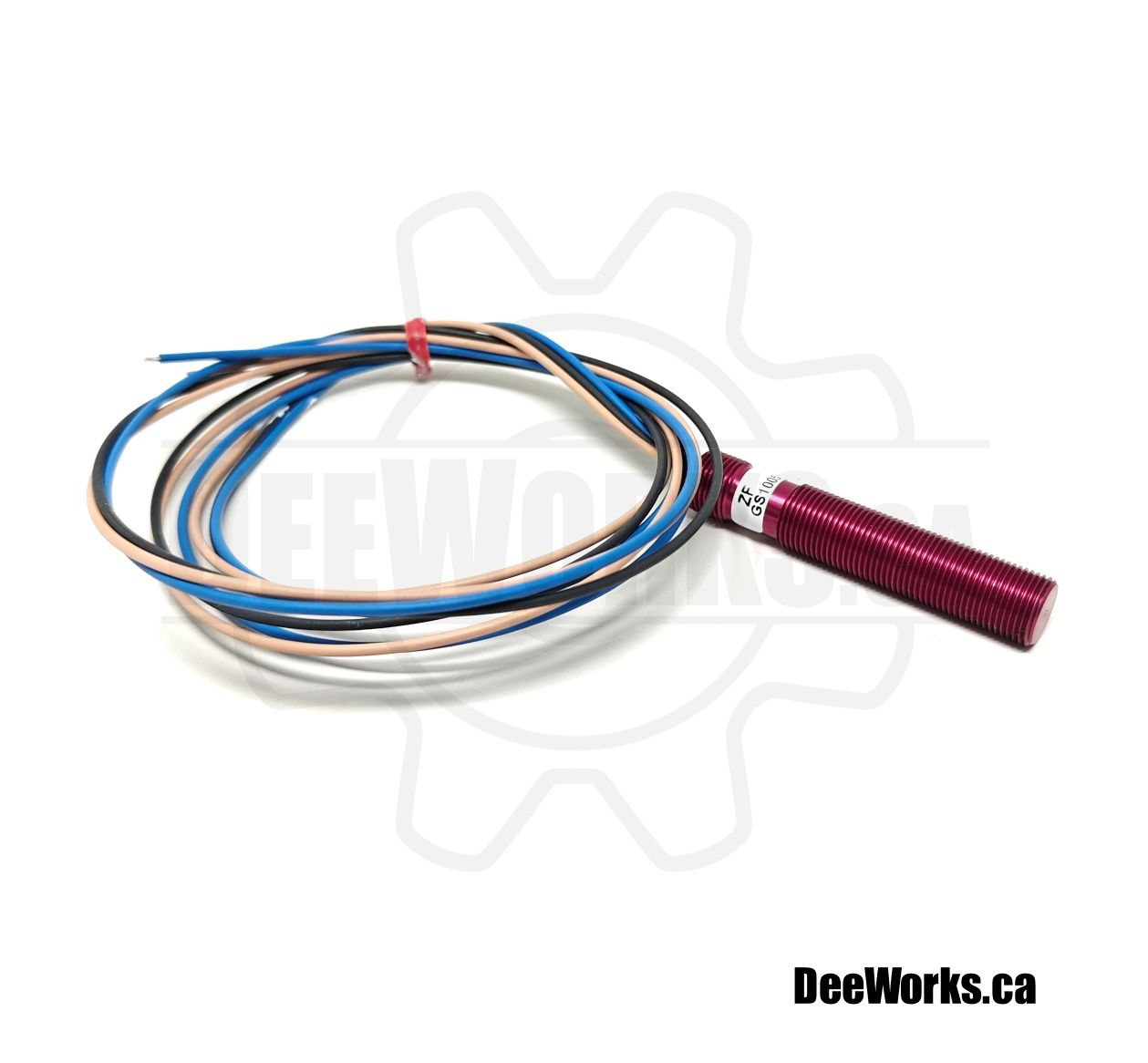

ZF Cherry gear tooth/Hall effect sensor

Use these inexpensive sensors for crank, cam or wheel speed/driveshaft rpm signal. These sensors have a very high 15kHz resolution and their fully threaded body lets you set the gap precisely with the wide range of adjustment available. On most installs these will require a pullup resistor, please refer to your ECU documentation for wiring. They can work with an input voltage ranging from 5 to 24 VDC.

Sensor body is made out of aluminum and is threaded M12x1. 2 nuts included.

Specs;

• 5-24vdc input voltage
• Recommended Sensor / Tooth Air Gap: 1.5mm
• Recommended Tooth Height: 5mm
• Recommended Tooth Spacing: 10mm
• Recommended Tooth Width: 2.5mm
• Recommended Tooth Thickness: 6.35mm
• Max Speed Detection: 15 kHz

Included;

• 1x ZF Cherry Sensor
• 2x M12 Thin Nut

Optional billet adapter:

Use this adapter if you are upgrading from the older Honeywell GT101 style sensor. This will bolt in place of the original sensor and lets you mount a ZF Cherry Hall Effect sensor. With their fully threaded body, these sensors are very easy to gap properly and get a strong and reliable reading.

They are CNC machined out of 6061-T6 aluminum, black anodized with a laser etched logo.

Specs;

• 6061-T6 Aluminum
• Black Anodized
• Laser Etched Logo
• M12x1 Inner Thread
• Mounting Hardware Included

Included;

• 1x ZF Cherry Sensor Adapter
• 1x M6 SHCS
